Vehicle Scale (Car SUV Truck)

• For vehicles up to 4 US Tons (8,000 lbs or 3,628 kg).
• Internal rechargeable battery powered or use AC wall outlet plug. Both options included.
• Maximum scale weight capacity: 1 US Ton (2,000 lbs or 907 kg) per wheel.
• Designed by a mechanical engineer and car aficionado for the gearhead & motorhead community.
• Pre-Calibrated and ready to use out of the box. Just turn it on (has internal battery) or plug it in to charge or use without battery.
• Internal battery lasts for hours, very low power consumption from simple display unit and four low voltage sensors.
• Lightweight at only 12 lbs (5.5 kg). Easy to carry, fits in a backpack.

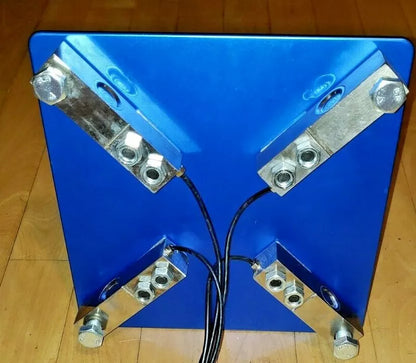

• Material: Aircraft grade 6061 Aluminum 1/4" inch thick plate
• Surface finish: Blue anodized, durable and tough
• Use it to weigh anything other than vehicles as long it rests stable and safely on the scale.
• Weigh your wheels, rims, tires, gas tank, cargo, luggage, seats, body panels, brake parts, suspension parts, transmission, differential, engine, battery etc...
• Financial advantage:
•     There are virtually no car scale systems on the market for under $975. You save about $500 with this unit.
•     One hour session at an auto shop to weigh and adjust your vehicle will cost around $250!
•     With this scale you have unlimited tweaking right at home, parking lot or you can even rent it out for extra cash.

Use it to obtain:

• Total vehicle weight
• Front/Rear weight distribution
• Left/Right weight distribution
• Cross weight distribution

If you have coilovers on your vehicle:

• Perform corner balancing
• Adjust Front/Rear weight distribution
• Adjust Left/Right weight distribution
• Adjust Cross weight distribution

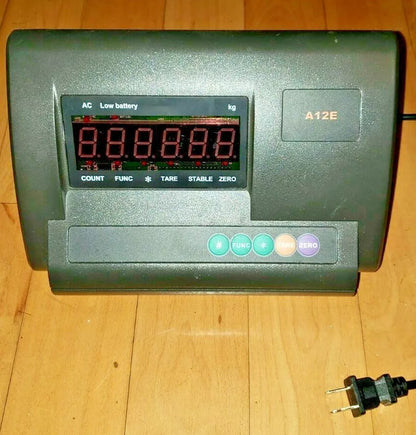

• Note: Scale console only provides the weight reading, you will have to keep track of the weights and distributions, very easy.

• Specifications:

  • Cable length: 5 feet (1.5 meters); may vary slightly.

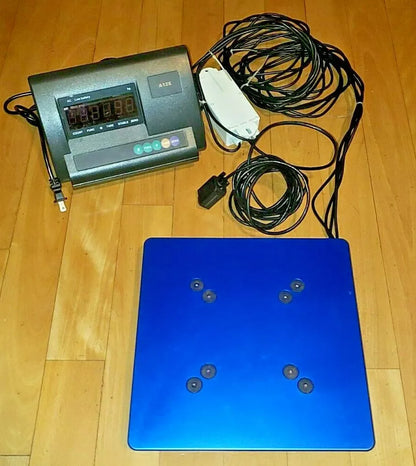

  • Scale aluminum pad size 12" x 12" (30.5 cm x 30.5 cm)
  • Scale pad can accommodate thick tire width up to: 375
  • Low profile: min-max: 2" - 2 3/8" (5 cm - 6 cm)

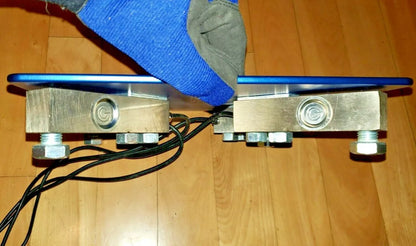

  • Adjustable feet to conform to uneven surfaces and adjust height.
  • Weight: 12 lbs (5.5 kg) for the actual scale under the wheel.
  • Maximum scale weight capacity: 1 US Ton (2,000 lbs or 907 kg) per corner so vehicle can weigh up to 4 tons (8,000 lbs or 3,628 kg assuming equal four corner weight distribution)
  • Units: KG or LB (user selectable)
  • Precision: 0.1 kg or 0.1 lb

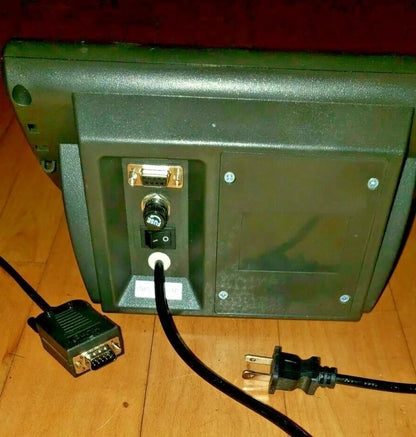

  • Power: Internal rechargeable battery or 120V, both included
  • Very low power consumption so it can also be powered using an inexpensive low wattage power inverter connected to your cigarette lighter plug (not included). But remember, it has an internal battery, so no external power needed other than to recharge.



  How to use (wood not included):

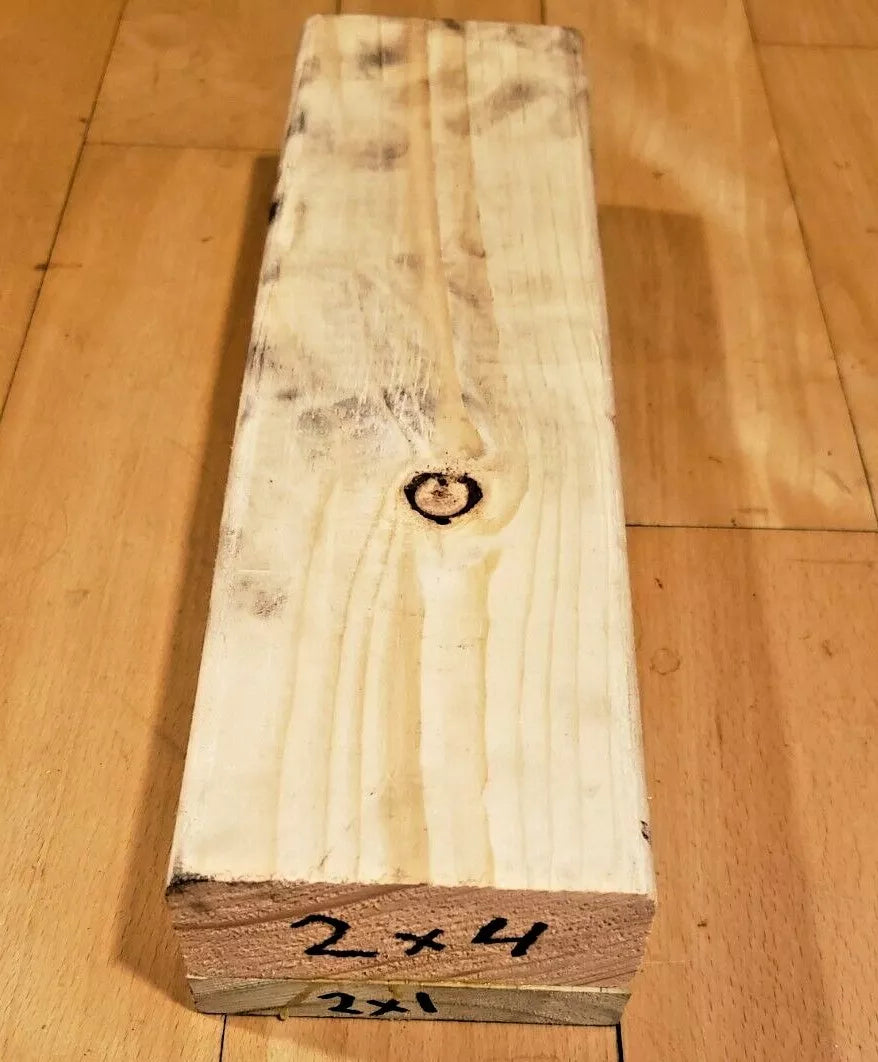

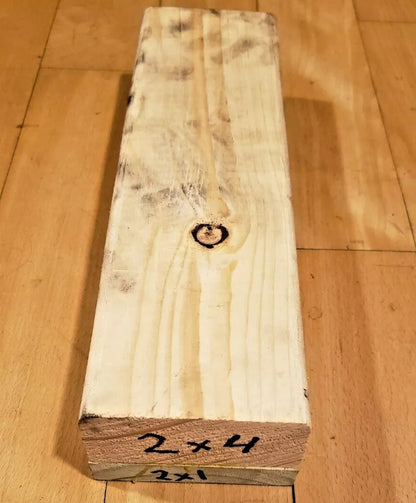

  • Make a combination of one piece of 1x4 wood plank and one piece of 2x4.  (see photo)
  • Each piece should be 10-12" long.  Glue them together with wood glue such as Gorilla brand.
  • Make three pairs. Let's call them stands.

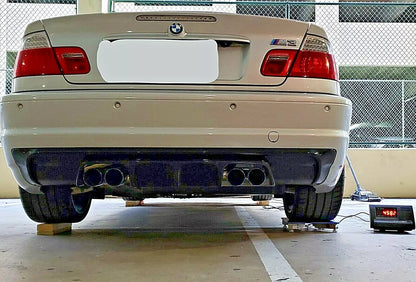

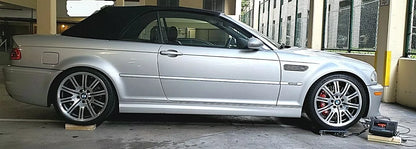

  • Place one stand under three of the four wheels by using a jack to lift each corner of the vehicle.

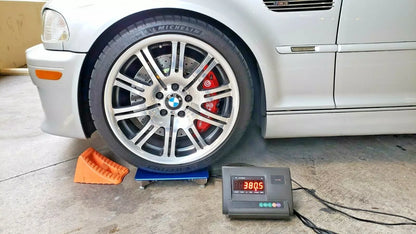

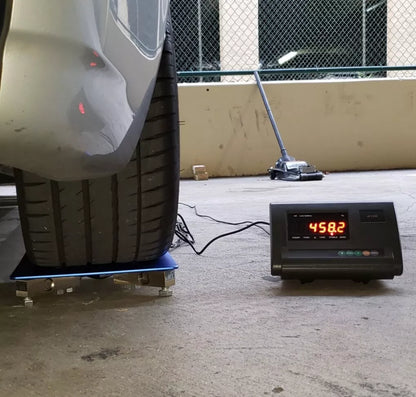

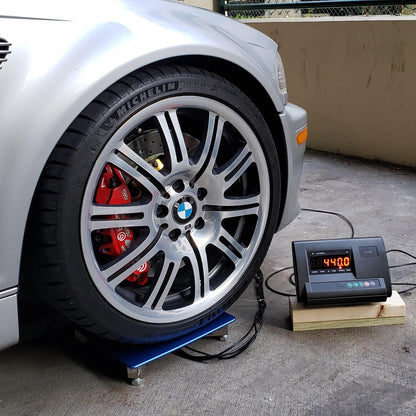

  • Lift the fourth wheel onto the scale.
  • Optional: If you don't want to lower and the raise the car for each corner, make seven of the above wood stands.
  • Raise and place a stand and scale under the car as described above.
  • Place the four remaining stands in front of the wheels and carefully roll the car forward onto them.
  • Remove the scale and place it behind the wheel you want to measure and roll the car back onto the scale and the original stands.
  • It is recommended that two people roll the car from each end ON A FLAT SURFACE and that one person has quick access to the handbrake.  Roll the car slowly, only a few inches needed. Use wheel chocks when the car is positioned.
  • Each glued pair of wood (each stand) weighs only about 1 pound, very light and inexpensive.
